WTX is an Indoor chiller for the production of chilled water suitable for large users in residential, commercial or industrial buildings. Single-circuit unit with centrifugal inverter two-stage oil-free magnetic levitation compressor also features a device for reducing the inrush current only to 6 Amperes! The electronic expansion valve, combined with the continuous modulation of the inverter compressor, from 100% to 30%, allows to quickly and accurately satisfy any thermal load demand. The evaporator is flooded with a subcooler, the condenser can be 1 or 2 water side passages, to satisfy any installation requirement. The technological choices made, always oriented to the highest quality and efficiency, allow EER values ​​to be reached> 6 (class A for Eurovent working conditions) and Extraordinary efficiencies at partial loads (ESEER up to 9, highest in the market). The series is available in 4 versions: High efficiency, Silenced high efficiency, Very high efficiency, Silenced very high efficiency


Cooling Capacity: 222 – 1950 kW

Compressor: Magnetic bearing centrifugal compressor

Evaporator: Shell & Tube

Fan: Axial fan

Type: Cooling Only

Refrigerant: R134A

Certification/Compliance: CE, EAC, Eurovent

Optional: Network Operation, ModBus, Remote Monitoring

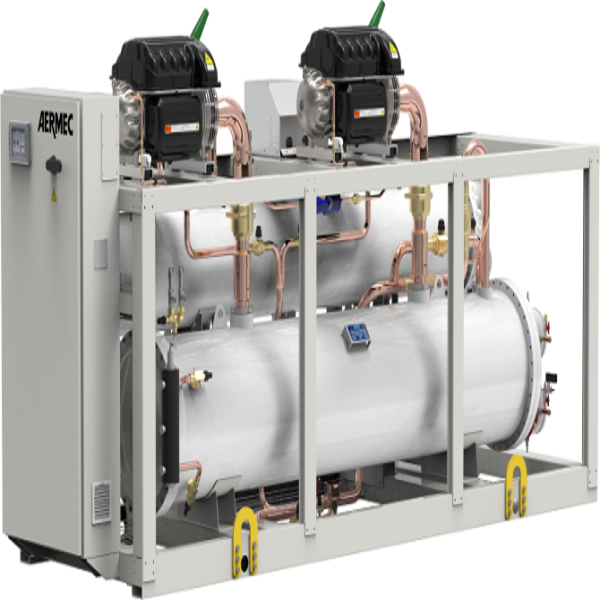

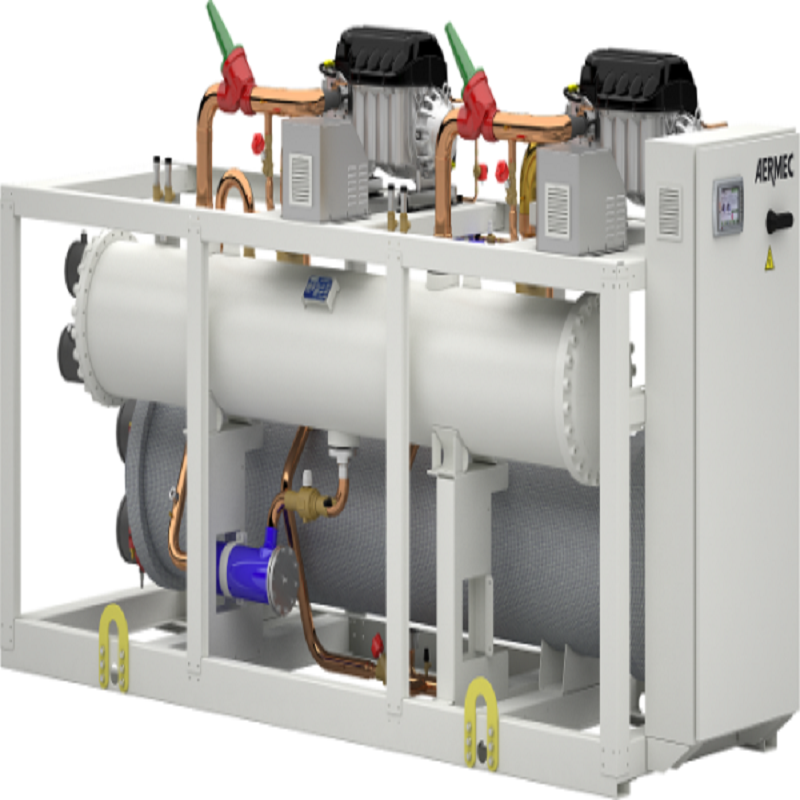

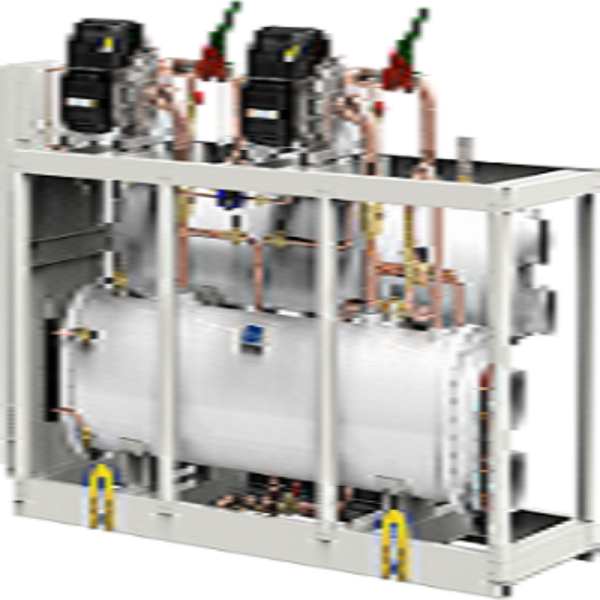

Units for indoor installation producing chilled water equipped with magnetic levitation centrifugal compressors and shell and tube heat exchangers  designed to meet air conditioning needs in residential / commercial complexes or industrial applications.
