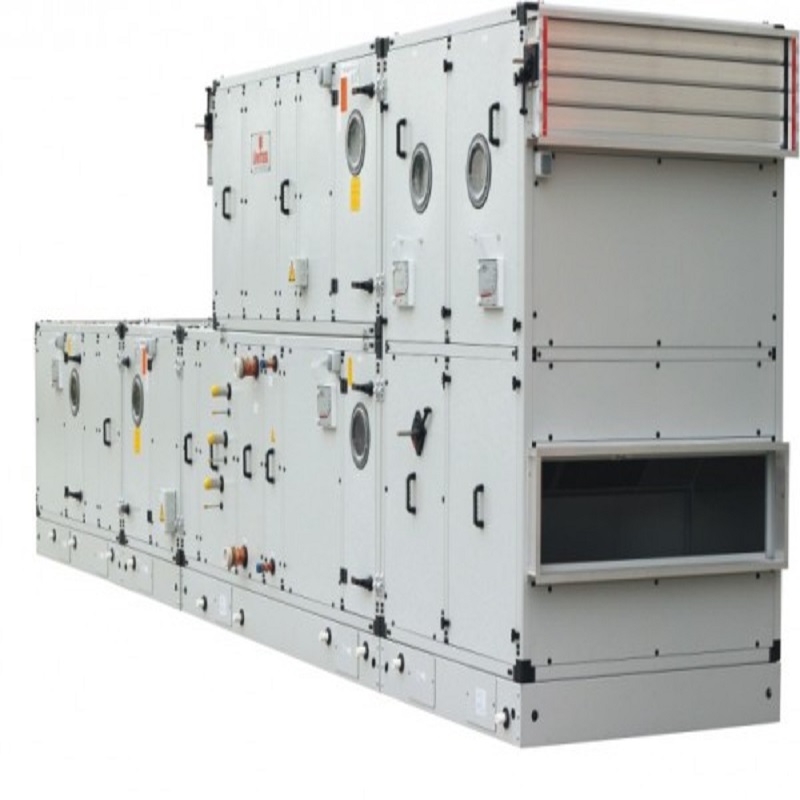

UKS Hygienic Air Handling Units


Flexible, Modular and Energy Efficient Air Handling Units in 23 different Cross-sections and up to 100,000 m3/h airflow. EUROVENT certified according to EN 1886. Full compliance with Eco-Design 2018. Improved and Enhanced Indoor Air Quality Standards. Integrated Electronic Regulation

Air Flow Rate: 1000 – 100,000 CMH

Certification/Compliance: CE, Eurovent, TUV

EN1886 Classification: Casing Strength D1(M), Casing Air Leakage L1(M) (-400Pa & +700Pa), Filter by pass leakage F9(M), Thermal Bridging factor TB2, Thermal transmittance T2


Profile - Thermo-break Galvanized Steel / Aluminum

Inner/Outer Sheet - Painted Galvanized / PVC Coated Galvanized / Stainless steel

Panel Thickness - 60mm / 50mm

Insulation - Mineral Wool / Rockwool / Glass Wool

Configuration – Inline / Double Deck / Side by Side

Fan - Belt driven Backward / Forward / Airfoil or Direct driven Plug fan with AC or EC Motor

Humidification - Sterile Steam / Water / Atomizing

Heat Recovery - Plate / Heat Wheel / Heat Pipe / Run Around

Heating / Cooling - Chilled Water / Hot Water / DX / Electrical

Coil - Copper Pipes – Aluminum Fins / Copper Pipes - Copper Fins

Options: Roof canopy, UV lamps, Inspection Glass, Manometers, Fan and Pressure, Sensors, Drain – siphons, VFD, Lighting, Door Switch
