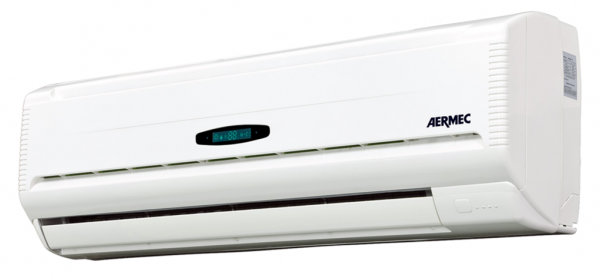

Hi-wall FCU

Products ID : FCU-FCW


Description


The units of the FCW & FCWI range are fan coils designed for air-conditioning. They can be wall installed. FCW has multispeed motor (including 3 selectable speeds) whereas, FCWI has brushless inverter motors. They have antistatic plastic tangential fans with an impeller with wing-shaped fins. This material ensures a notable noise reduction as well as reduced electricity consumption in comparison with traditional metal fans. FCW units have an electrostatically pre-charged air filter that's easy to remove and clean and can be equipped with various accessories and integrated in the VMF - Aermec centralised hydronic management system.



Fan coils for wall installation. Designed for air treatment in the residential or commercial sector. Can be combined with any heat generator.



Cooling Capacity: 1.90 – 4.00 kW



Heating Capacity: 2.40 – 5.10 kW



Installation: Wall



Type: 2 Pipes



Fan: Tangential fan



Optional: Network Operation / VMF System
